LED tester lets you easily check the battery's charge. Built-in charger pulls just enough power from your vehicle when your trailer is hooked up to make sure your breakaway battery stays charged and ready to go in case a disconnect ever occurs.
Features:
- Makes sure your trailer safely stops if it ever separates from your vehicle
- Activates your trailer's electric brakes if the trailer disconnects from the tow vehicle
- Automatically charges battery with the built-in charger when connected to your vehicle
- Won't overcharge your battery
- Lets you test battery status with the push of a button
- Mounts on the outside of your trailer's frame

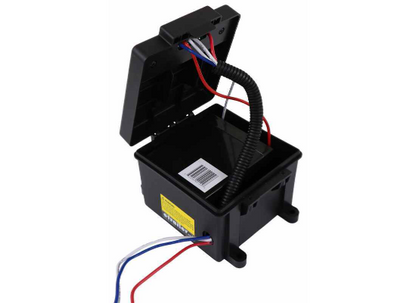

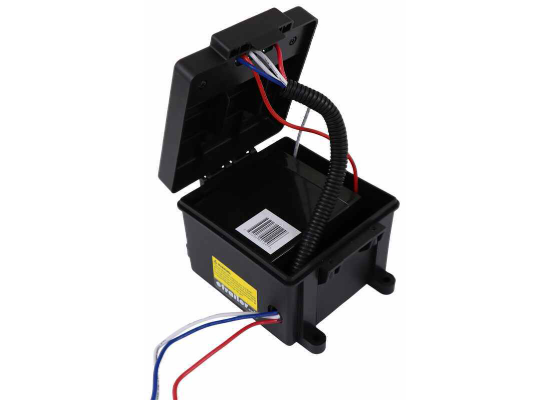

- Side-loading case allows easy access to the battery
- Switch installs on your trailer's frame with self-tapping screws (sold separately)
- Protects battery from rain and debris with durable, plastic case
- Lid can be secured with padlock (sold separately) to deter battery theft

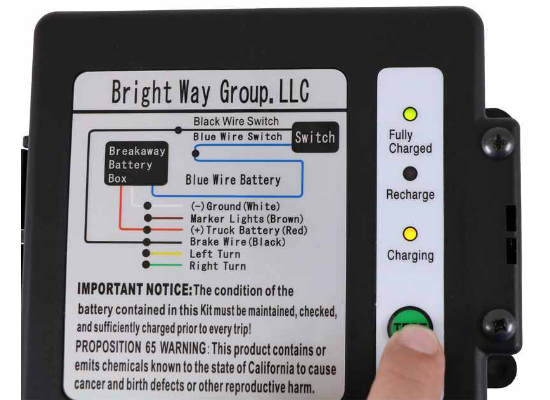

- Wiring diagram is printed on the battery box lid
- Rubber O-ring in the lid helps keep water out of the box
- Drain holes in the bottom of the box help with venting and letting condensation drain

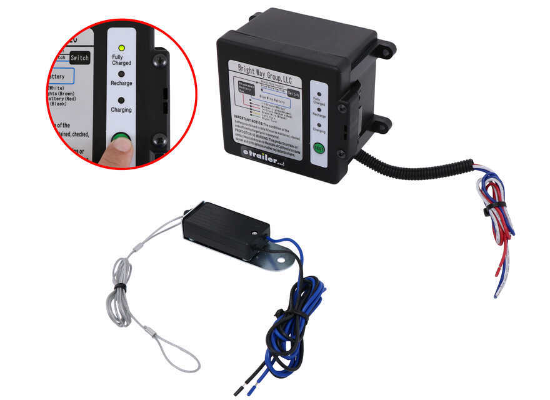

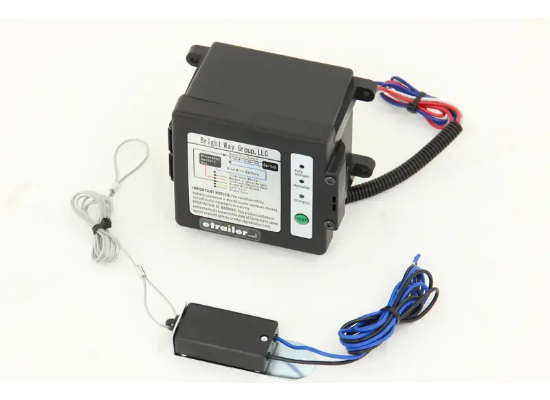

- Kit includes breakaway switch, charger, 5-amp-hour battery, battery box, wiring, and wire loom
Specs:
- Application: single-axle or tandem-axle trailers with electric braking systems
- Breakaway cable length: 4'
- Charger amperage: 1 amp
- Battery:
- Voltage: 12V
- Type: Lead-acid
- Capacity: 5 amp-hours
- Battery box dimensions: 3-3/4" long x 6" wide x 5" tall
- 1-Year limited warranty
Note: A breakaway system is required by law in most states for trailers that are equipped with electric brakes and have a GTW of at least 3,000 lbs.
The integrated charger keeps the included battery charged and ready to go. At any time, if you would like to see what the state of the rechargeable battery is, just push the green button and LEDs will light up to indicate the battery's status. If it's green, it means the battery is fully charged. Yellow shows it's currently charging, and red indicates a low battery.
P/N ABW2382
